DEVELOPERS

Run a SCADA with an AI agent on your laptop in ten minutes.

The Faceplate stack ships as Docker Compose: Studio, Runtime, the historian and an OpenClaw agent pre-configured for power grids. One command, then ask it to find every transformer in substation SUB-2.

Get the stack on GitHub →Read the docs

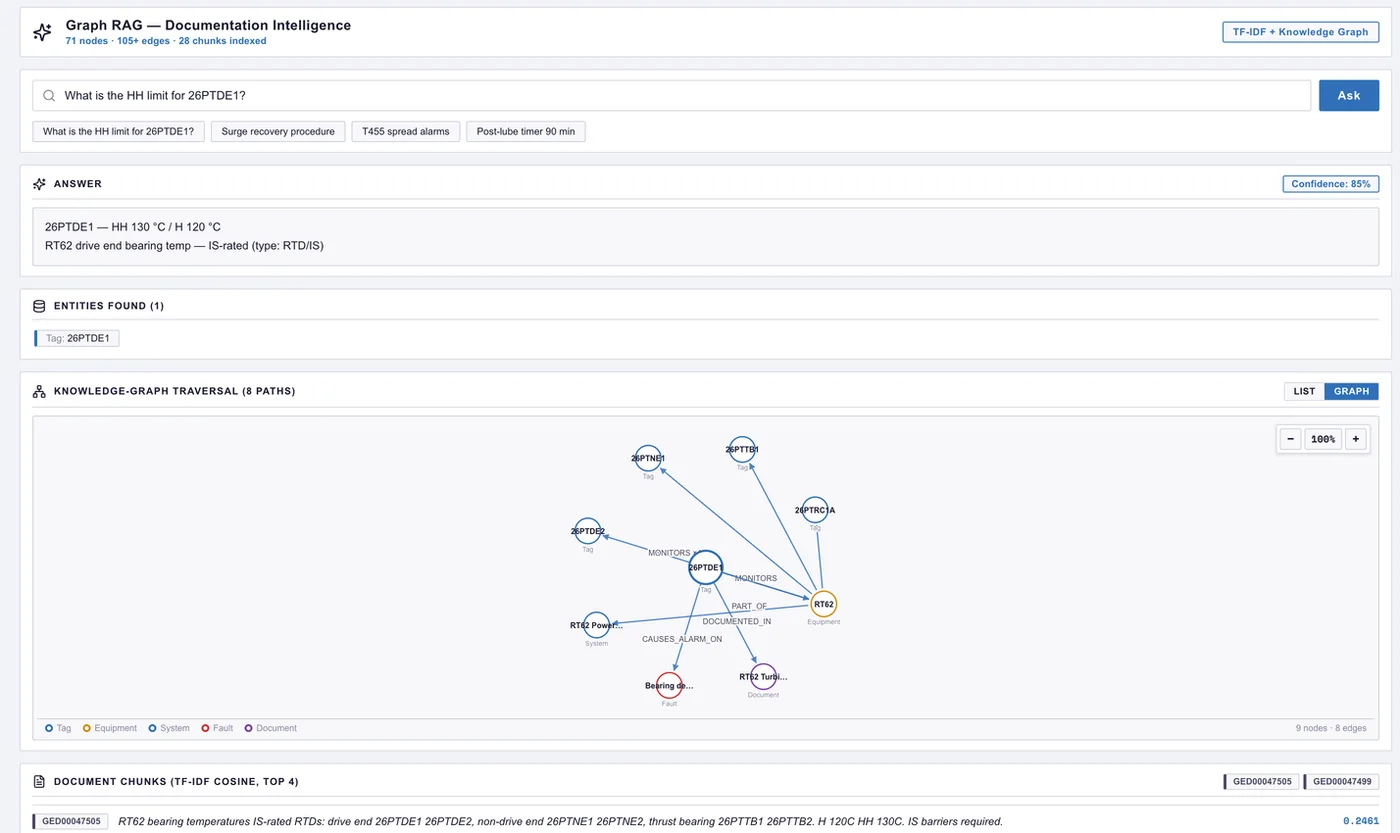

The OpenClaw agent answering a question with a knowledge-graph traversal over a SCADA project — The agent answers with the objects and documents it used

Quick start

bash

# 1. Get the agent configuration and skills
$ mkdir -p faceplate_stack/openclaw && cd faceplate_stack
$ git clone https://github.com/faceplatekirill/fp_openclaw.git openclaw

# 2. Volumes for the SCADA database and logs
$ mkdir -p faceplate/DB faceplate/logs

# 3. Start Faceplate and the agent
$ docker compose up -d

# Studio   http://localhost:9000/fp/studio
# Runtime  http://localhost:9000/fp/runtime
# Agent    http://localhost:18789

Then import the light demo project, a power-grid model with a simulator, and start asking questions.

What the agent does out of the box

Object discovery

Find any SCADA object in plain language. No tag paths to memorise.

“Find all transformers in substation SUB-2”

Time-series analytics

Min, max, averages and integrals over any period, without building queries.

Data health audit

Frozen sensors, telemetry gaps and signal health in one diagnostic view.

Alarm intelligence

Bad actors and repeating issues across a shift.

“Top 3 recurring alarms in SUB-3 last night?”

Four ways to start

Pick the depth you need.

Option	What it includes	Who it is for
Foundation Docker Compose	The stack with an empty project	Developers deploying or building their own project
Light demo	Power-grid project with a simple simulator, about 5% live telemetry	Exploring the UI and the grid knowledge base
Data deep-dive	Project with a historical archive database	Testing history and trend skills at scale
Ready-to-go VM	SCADA, agent, simulator and archives pre-installed	Evaluation without any setup

Local, on-premise models for production and closed networks; cloud APIs for open test projects. Integration support: openclaw@faceplate.io. Or open a support request →
